Wire EDM
At Norfolk Specialties, we cut a very wide variety of jobs in our wire edm. We currently burn everything from steel mill parts to medical parts. We are able to run .004", .006", .008", and .010" wire at up to a 30 degree angle.
We also have a hole popper. It’s capable of burning precise holes ranging from .012"-.118" diameter in hard or soft metals and carbide. It’s also handy for removing broken drills, taps, easy-outs, and bolts.
Accutex AU-500i Wire EDM Machine Specifications
| Max. Work Piece Size L x W x H (in) | 39" x 22" x 11.875" |
|---|---|
| Max. Work Piece Weight (lbs) | 881 lbs |

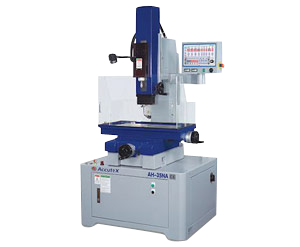

Accutex AH-35 Small Hole Popper Specifications
| X, Y axis travel | 13.8" x 9.9" |
|---|---|
| Z axis travel | 13.8" |
| Work table size | 23.6" x 11.9" |
| Max workpiece height | 13.0" |
| Max workpiece weight | 551 lbs |
Accutex SP-MED Wire EDM Machine Specifications
| Max. Work Piece Size L x W x H (in) | 30.118” x 21.062” x 9.500” |
|---|---|
| Max. Work Piece Weight (lbs) | 1102 lbs |
Upon customer request we also do heat treatment.
Contact Us
We would be pleased to bid on any job you are sending out for metal work. Call (402) 371-0714 for a no obligation telephone consultation.
